This is Samantha with the DevOps Library, and today I'd like to welcome you to our new DevOps for Beginners Course! This course is going to be a little bit different from our normal videos. We're going to use a story to illustrate how to solve real world problems using DevOps tooling and concepts.
Imagine you've just started working for a web based company that's desperately trying to scale. We'll start out with the basics, but by the end of this course, you'll be ready to deploy, monitor, and scale applications in the real world.
You’ve spent most of the day so far just getting to know the team. Kevin, one of the guys from the build team, volunteers to teach you and Ron how to set up the Montonomy webapp. Well, as soon as he finishes an email to QA about the last night's release that is.
Suddenly everything changes. Your boss Steve, begins shouting across the room
"OMG CHECK the homepage, CHECK the homepage!".
Before you've even opened up your browser, 3 people have already screamed "408!!!". Seconds later the roar has died down as everyone scrambles to figure out what's causing the website to timeout.
An unspoken awareness of thousands of angry customers falls over you, and permeates the room. You quickly SSH into one of the web servers, and after a few dead ends, decide to run 'top'.
Good God, the server's CPU is pegged at 100%.
Quickly you run over to let Steve know. Without even saying a word, the look of sadness and fear on his face tells you the solution isn't going to be easy.
Using sorcery, or as Steve calls it Perl, the status of each web server pops up on the screen. Every single one is maxed out.
Steve then proceeds to address the team:
"I need 2 more Web Servers ASAP!
Justin, Chris, move as fast as you can, and can someone look into why we're being hit so hard?!". Seems like a pretty easy fix right? A few minutes later it dawns on you why everyone is still panicking.
...the servers are being configured by hand.
Flashing forward to Day 2.
Things have been going quite a bit better, the website's up, and Justin even brought in donuts. Steve is currently out explaining to the marketing team why sending a 50% off coupon to 1.5 million members without a heads up was a bad idea, and Kevin is finally going to show you and Ron how to set up the company's app.
"So the first thing you guys need to do is to clone our main app repository, which is hosted on Github. Are you both pretty comfortable with git?"
You and Ron both nod, although you suspect Ron is lying.
"Awesome! Well, we only need two files from the repo, the devops-demo.sql script, which we'll use to set up the database, and the devops-demo.tar.gz file, which goes on the webserver."
Before Kevin can continue, Ron stands up and says
"I get it"
then wanders off. Kevin sighs
"He doesn't get it, he hasn't gotten anything. Of everyone, he should definitely be listening. Let's put it this way, he's like a human chaos monkey".
Unsure of what to say, you ask what to do next.
"Ah sorry, he's not that bad.
Anyway, login to AWS with the creds I emailed you earlier. I went ahead and already spun up two Ubuntu 14.04 instances. We'll use one as a MySQL server for the Montonomy backend, and the second for the frontend.”
After SSHing into both servers, Kevin has you pull up an Evernote with each of the steps listed.
Alright, so when you're doing these steps, make sure you're running as root. I also like to do an apt-get update before doing anything else. Now install MySQL. Type:
apt-get install mysql-server
Before you can continue, MySQL pops up asking for a password.
"At this point, you'll want to use our standard password or you'll have to edit the SQL script, let me find it real quick".
Kevin then opens up Keepass on his laptop, and after a minute or two tells you to type in "devpass".
"Perfect!" Kevin says, "Now you just need to run a few lines to configure MySQL.
They're pretty long, do you want me to type them real quick?"
You nod, then Kevin types:
mysql -uroot -pdevpass -e "create database devopsdb"
"Alright, so that line creates the database, now I just need to upload the SQL script from the repo and run it, one moment".
Kevin SCPs the SQL script to the server, then runs:
mysql -uroot -pdevpass devopsdb < devops-demo-1.0.sql
"Alright, we're just about set on this server, but you still need to set the bind address to allow any host, otherwise the webserver won't be able to connect. Are you pretty familiar with MySQL?"
You nod, and pull up /etc/mysql/my.cnf in VIM. After commenting out the bind address, you run service mysql restart to apply the changes.
Kevin smiles, then says
"Thank the gods, you don't use nano, I knew we hired the right person.".
You don't mention it, but you were using nano up until a few months ago until after you spent a day playing VIM Adventures.
"Now onto the last part, we still need to set up the webserver.
Unfortunately, I have a meeting with Todd I need to go to. I'm trying to get him onboard with using Jenkins, but he's been pretty much against changing anything. If you have time, just follow the rest of the Evernote and let me know later if you have any questions. Oh yeah, and make sure you note down the IP address of the SQL server, you'll need it for the config.ini file on the app."
Kevin walks off and for the first time today you're on your own. You pull up Evernote alongside the web server terminal and start running through the steps.
apt-get install apache2 php5 php5-mysql
After opening up the page, you notice that it DOES come up, however the database connection fails. Unfortunately, that's the last step in the Evernote.
Thankfully, Max doesn't look too busy so you ask him for help.
"Ahhh... we really need to update that guide, you're good to go on the infrastructure part, but you still need to set the config variables. Open up /var/www/html/config.ini. Replace DBHost with the IP of whatever database you set up, SQLUser with "root", and SQLPassword with devpass unless Kevin had you use something else.
For the SQL DB Name, set it to devopsdb."
"What do I use for ENV?" you ask Max.
"Ah, make sure you use DEV, that way the app doesn't point to any of our production stuff. That should be it, refresh the page to make sure"

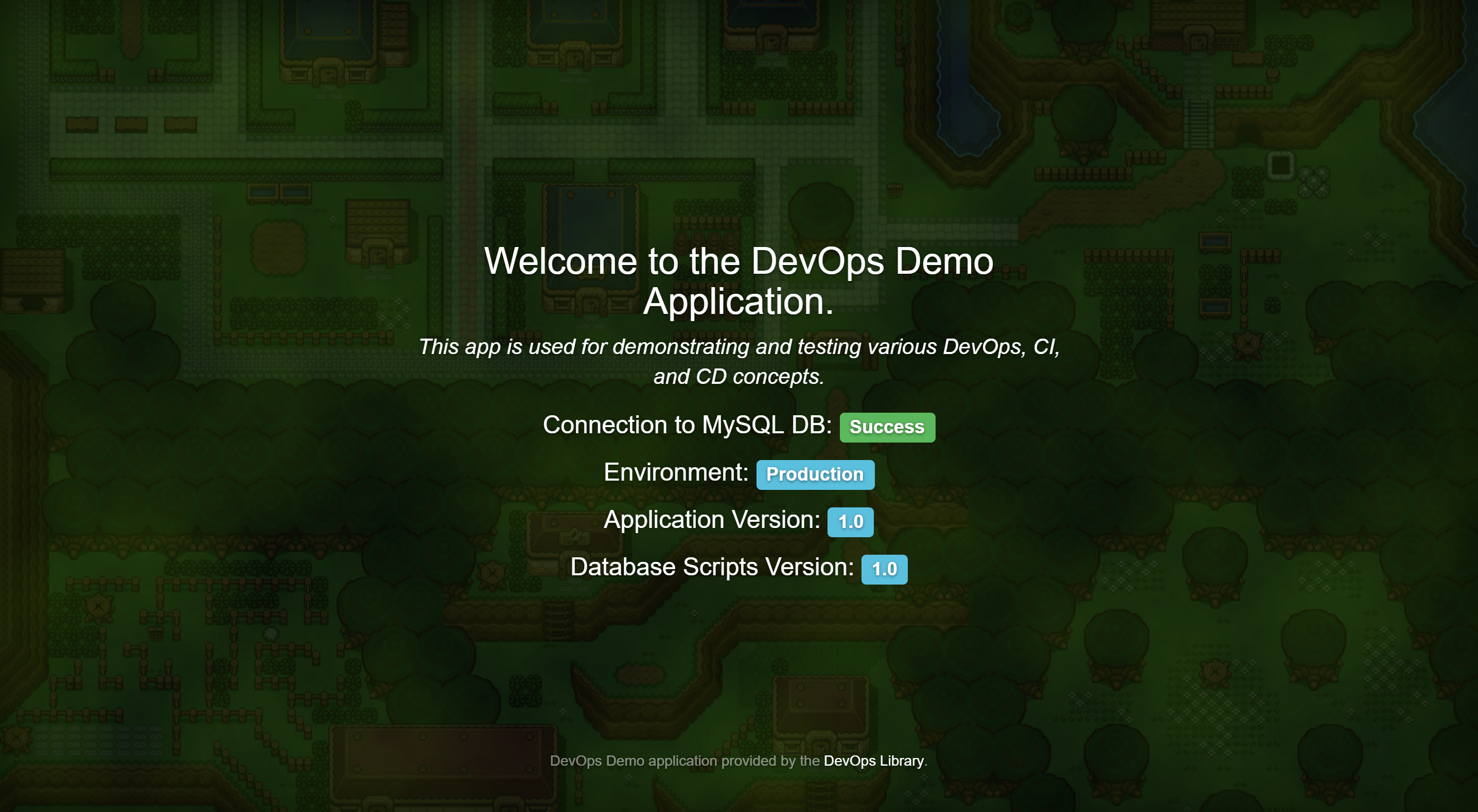

Success! Thanks to Max and Kevin's help, you've just learned how to set up the app! While we know setting the app up by hand was painful, don't worry, in the next episode we'll automate the process. I know this style is quite a bit different from what we normally do, please let us know in the comments if you like it or would prefer us to focus on our normal videos.
If you have a real world problem you'd like us to address in the story, let us know and we'll do our best to add it!
Thank again and see you soon.
